Yakka Gear

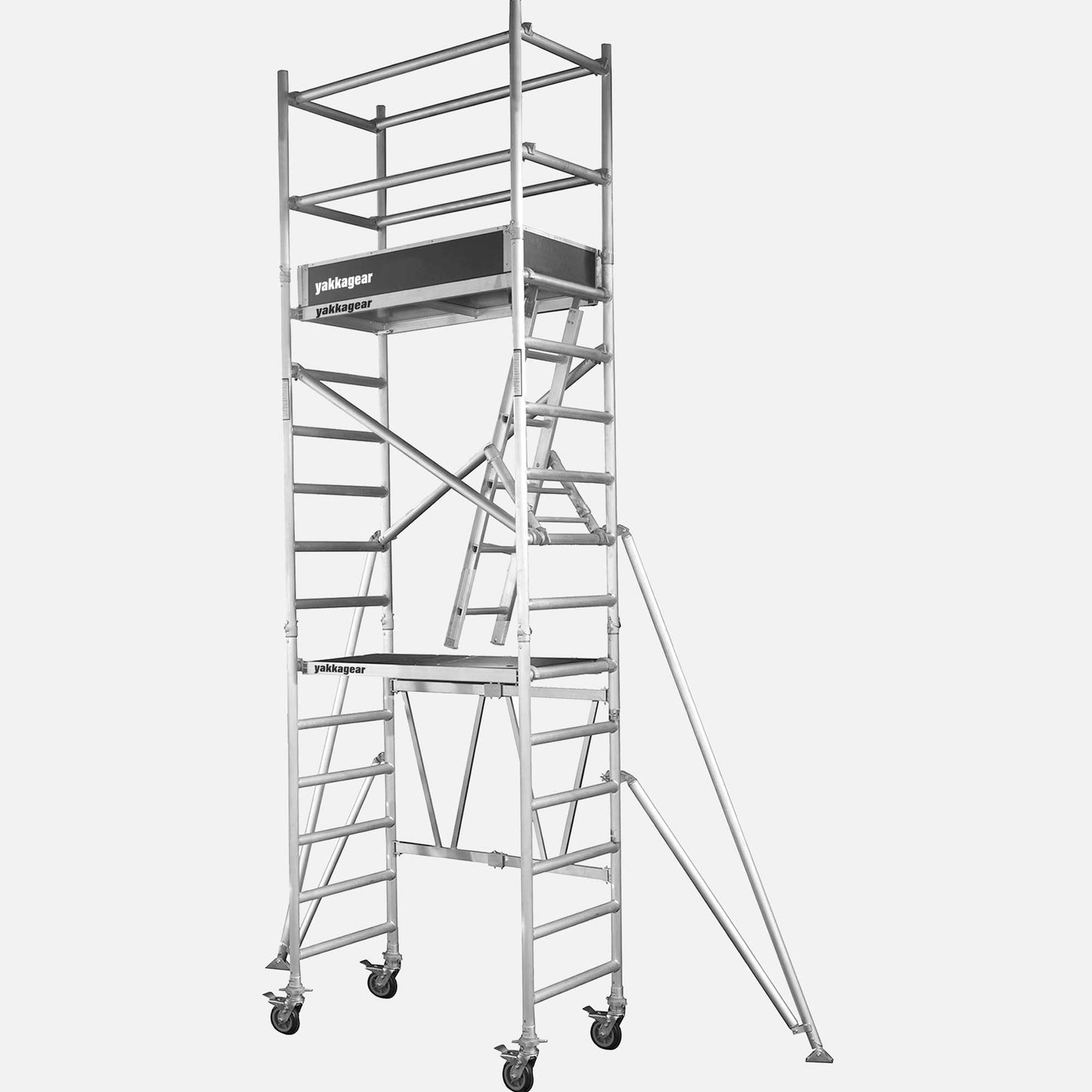

5.5m Reach Aluminium Compact Mobile Scaffolding

5.5m Reach Aluminium Compact Mobile Scaffolding

1.44m L x 0.74m W | up to 3.5m H working platform | 225kg Load Rating

SKU

5.5mR BR PU BT

Payment options (click to see details)

Choose Bank Transfer for lowest price guarantee. Credit Card option includes 2.65%, already reflected in the displayed price. Learn more

To match your payment method:

  • For Credit Card payment: Select the "Credit Card" product option.
  • For Bank Deposit: Select the "Bank Transfer" product option.

Please ensure your product selection matches your preferred payment method at checkout.

Payment Option
Pick up or delivery
$2,799
$3,359 $2,799
Sale Sold out
GST included. If delivery required, contact us for a delivery quote.
Order made between 19th December 2024 - 6th January 2025 will be processed on 7th January

Collect your order from 2hrs or express delivery from next day. Get a delivery quote to calculate shipping. Super easy ordering in just 2 steps learn how it works.

Express delivery quote
Delivery available to Sydney, Melbourne, Brisbane, Gold Coast, Newcastle, Sunshine Coast, Wollongong, Canberra, and surrounding areas.

If "delivery required"

If "delivery required", then shipping availability/price will need to be calculated before completing checkout. Please complete the Delivery Form above or contact us.

Leading Australia’s fastest delivery network:

  • In many cases, even better value than picking up yourself
  • Oversized items are accepted
  • Delivery address accepted to residential, worksites or commercial
  • Driver to call/SMS receiver 30 min - 1 hour before arrival
  • Online tracking (when available)
Shopify secure badge
Specifications & User Manuals
Side by Side Comparison
Compact Mobile Scaffold FAQ
See more product choices
Contact Us View full details

Watch the video demonstration

Completely changes the way you're working

Goes anywhere, indoor + outdoors.
Compact to fit through doorways.
Adjustable Wheels + All Terrain And Stairs toolkit options for uneven ground.

This compact scaffolding for sale is your go to adjustable and customisable access equipment. Working platform heights up to 3.5m with reach up to 5.5m using the extension toolkit and the tower toolkit with supported guardrails.

With 2mm welded aluminium tubing made to Australian Standards and secured connectors as well as outriggers for added support, it reduces shake and comes with lockable scaffolding wheels.

Its compact build at 1.44m length x 0.74m width can be used in tight and hard to reach spaces, with hand rails for added safety.

The steady V-Frame System allows it to be easily assembled or disassembled by yourself and fits through doorways, corridors, indoor and outdoor spaces from its foldability or flatpack storage style.

This portable lightweight scaffold is easy to move around the job site, while also being designed to withstand the demands of construction projects with a load rating of 225 kg while the tower is only 87 kg in total weight.

This is the ideal mobile elevated work platform for: builders, construction workers, painters, home renovators, gardening, home maintenance, DIY, cleaners, and more.

Available to pick up in Brisbane, Sydney, Melbourne, and delivery to Canberra, Newcastle, Gold Coast, Sunshine Coast, and surrounding areas.

Indoors + outdoors

Goes anywhere

Engineered at 1.44m L x 0.74m W to fit through doorways, corridors, tight spaces, and properties with less than 1m boundaries.

If you’re moving between spaces, simply push the scaffolding through, rather than rebuilding every time. It’s super easy to manoeuvre by one person.

Includes all the required parts upfront

3.25m, 3.60m, 3.80m, 4.20m Reachability choices:

Super cost-effective and do not require any additional extras.

You have the option to add more toolkits later on, upgradable to the 5.5m or 6m reachability.

5.5m and 6m reachability choices:

Equipped with all the necessary parts to go higher, including:

  • Conveniently foldable compact internal Ladder
  • Prevent falling objects with Toe Board
  • 2 Stabiliser Legs that can be adjusted individually
  • 2 Work Platforms with hatch, allowing you to reach 2 levels of height at the same time. Having 2 platforms also makes it easier to build up and down, saving you time and effort.

Made to be easily stored onsite or in your car.

Always ready to go

The modular system means the biggest individual frame piece is 1.85m x 0.74m when flatpacked.

This is a great way to keep scaffolding always with you, and a great preventative against theft as you can place it in a secured spot.

Yakka Gear Australia compact scaffolding tower as access equipment, showing the scaffolding completely folded, half folded, and completely open. 1.44m Length x 0.74m Width, with working platform heights ranging from 1.2m to 3.9m and reach between 3.25m to 6m, view from the front angle, with white background.

Indoors + outdoors

Crazy fast + efficient

The Base Toolkit comes with the Foldable V-Frame for instant setup.

Simply open the V-Frame, then insert the base platform and attach the 1 horizontal brace. One person can easily do this in as little as 30sec.

One time setup and keep going with lockable wheels.

Doubling your work output

2-in-1 System

6m Reach allows you to separate the tower into 2 smaller towers at the same time, rather than having only 1 tall tower all the time. Already includes:

  • 5" Castor Wheels (x4 Pack)
  • 6" Adjustable Wheels (x4 Pack)
  • Work Platforms with hatch x 2
  • Foldable ladder x 1
  • All required parts/toolkits for 2 smaller bay towers

Tower 1
Up to 1.6m platform height (up to 3.6m reach)
Tower 2
Up to 2.6m platform height (up to 4.6m reach)

Shop 2-in-1 System
Yakka Gear Australia compact scaffolding tower as access equipment, including the Base Unit, Extension Unit, Tower Unit, and Adjustable Wheels. 1.44m Length x 0.74m Width, with working platform height of 3.9m and reach up to 6m high. View from ground level looking up towards the scaffolding set up in the warehouse.

FULLY ENCLOSED PROTECTION

Built for safety

Maximising work safety in a fenced enclosure.

Proven safety with structural frame welding to 1554 Australian Standards. Certified to AS/NZS1576 Australian Standards and WorkCover.

2mm reinforced tube frame.

Welded tubing and secured connectors to reduce shake.

Hard density castor wheels.

Adjustable Wheels Aluminium Compact Mobile Scaffolding from Yakka Gear, view from the side.

scaffold part

Generously adjustable

Individually adjustable wheels

  • Fine tune approx. 300mm height adjustment, or use on uneven surfaces with the Adjustable Wheels toolkit.

2-in-1 System:

  • An optional additional set of Wheels or Jacks allows you to separate a larger tower into 2x smaller bay towers.
Shop Adjustable Wheels

SCAFFOLD PART

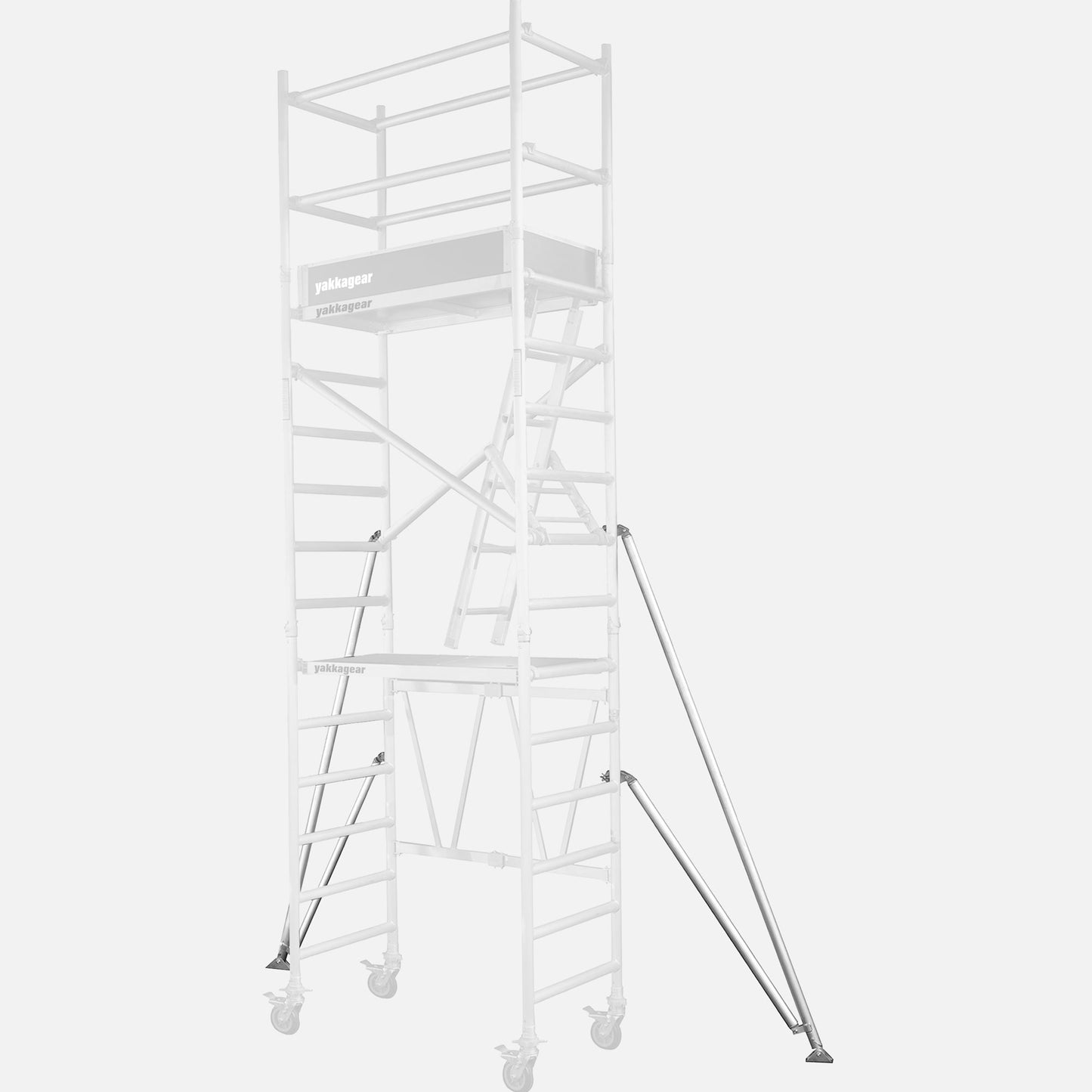

Stabiliser Legs

  • Stabilizing the heights and ensuring safety in construction.
  • Suitable for 5.5m & 6m Reach Compact Scaffolds.

SCAFFOLD PARTS

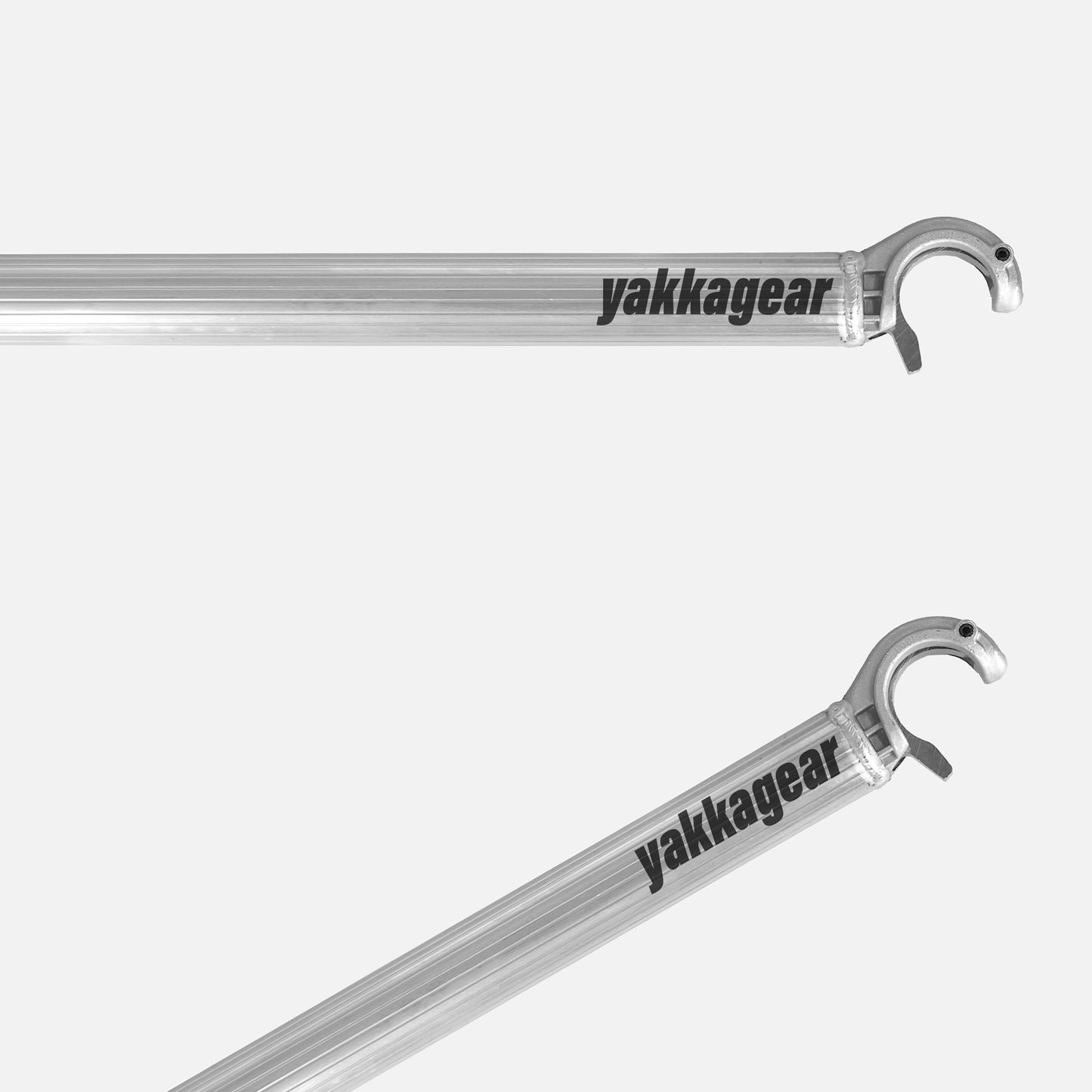

Horizontal and Diagonal bracing

Horizontal Bracing (top):

  • Bracing to strengthen scaffolding structure
  • Functions as mid-guard rails along the open sides to provide a barrier for fall protection

Diagonal Bracing (bottom):

  • Cross bracing to strengthen scaffolding structure
Yakka Gear Australia Kickboards for 2.5m Length 1.3m Wide 4.6m, 6.6m, and 8.6m reach wide scaffolding tower access equipment with working height of 2.6m, 4.6m, and 6.6m, detailed view of the kickboard from the side front without the scaffolding, with black background.

SCAFFOLD PART

Kickboards

Fall protection. Typically installed on the platform level to prevent tools, materials, or other objects from being accidentally kicked or knocked off the platform.

This safety feature minimises the risk of potential injuries to workers on the scaffold or individuals below.

Yakka Gear Australia Base Unit, 1.44m Length x 0.74m Width, with working platform height of 1.2m and reach up to 3.25m high. View from the front side angle set up in the warehouse.

SCAFFOLD PART

Marine Plywood Platform

A safer and more efficient work environment while using the scaffolding.

  1. Hatch Door: for user to climb through and reseal
  2. Coated plywood board for improving water resistance, grip, and long-life durability
Yakka Gear Australia compact scaffolding tower as access equipment, including the Base Unit, Extension Unit, Tower Unit, and Adjustable Wheels. 1.44m Length x 0.74m Width, with working platform height of 3.9m and reach up to 6m high. View from ground level looking up towards the scaffolding set up in the warehouse.

scaffold part

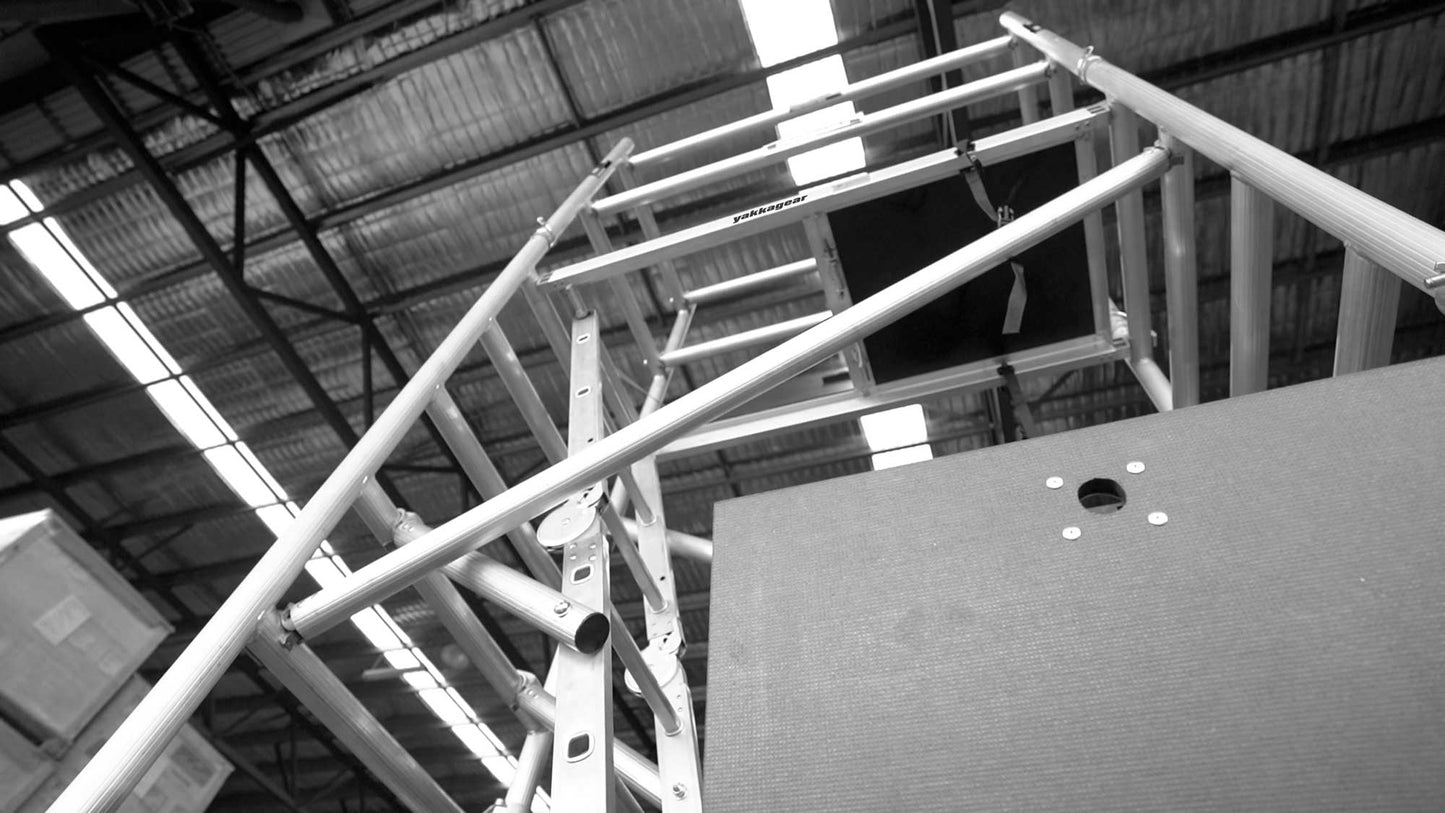

Compact Foldable Ladder

  • Access the second platform from the first platform easily using the ladder through the hatch door.
  • compact foldable ladder that folds away under the platform when not in use.
  • Built into the platform
Yakka Gear Australia illustration for how reachability is calculated by adding 2 metres on top of the working platform height. For access equipment, a scaffolding tower, with black background.

Choosing your scaffolding size

Platform Height
Height to stand on.

Reachability
Height reachable when on top of the platform. +2m from platform height for arm's reach.

Environmental factors
If the surface area is uneven, or if you need more control for fine height adjustment, then you'll want to look at one of the configurations with the Adjustable Wheels toolkit.

Need something extra for challenging spaces or terrain?

Upgrade with the All Terrain and Stairs Toolkit.

Expanding your ability to work safer across stairwells, steps, elevated terrain.

Adjustment ranges from approx. 475mm to 1.4m.

One time setup and keep going with lockable wheels.

Learn more
1 4

Specifications

Product Brochure User Manual

  • Specs

    Engineered from 6061-T6 high grade Aluminium

    Welded 2mm tube and secured connectors reduce shake.

    Foldable V-Frame for instant setup.

    Hard density resin castor wheels

    225kg load rating.

  • 2-in-1 System

    6m Reach allows you to separate the tower into 2 smaller towers at the same time, rather than having only 1 tall tower all the time. Already includes:

    • 5" Castor Wheels (x4 Pack)
    • 6" Adjustable Wheels (x4 Pack)
    • Work Platforms with hatch x 2
    • Foldable ladder x 1
    • All required parts/toolkits for 2 smaller bay towers

    Tower 1
    Up to 1.6m platform height (up to 3.6m reach)
    Tower 2
    Up to 2.6m platform height (up to 4.6m reach)

  • Dimensions

    Product dimensions (approx.)
    View User Guide Excerpt PDF >


    Packaging dimensions (approx):
    Base toolkit 1.89m x 0.78m x 0.23m, 36kg.
    Extension toolkit 1.52m x 0.78m x 0.14m, 11kg.
    Tower toolkit 2.03m x 0.78m x 0.24m, 40kg.
    Adjustable Wheels toolkit 1.1m x 0.25m x 0.25m, 17kg.

  • Certification and warranty

    Warranty
    12 months Australian manufacturer's warranty.


    Certified
    Australian Standards and WorkCover (AS/NZS157, Welding to 1554 Australian Standards)

What's Inside

  • Yakka Gear Australia compact scaffolding tower as access equipment, including the Base Unit, 1.44m Length x 0.74m Width, with working platform height of 1.2m and reach up to 3.25m high. View from the front side angle set up in the warehouse.

    3.25m reach

    Reach (approx):

    • 3.25m Reach: 3.25m Reach, 1.2m Platform Height.
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 2.2m H

    What’s inside:

    Base Unit

    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x
    Shop now
  • 3.6m Reach (1.6m platform) Compact Mobile Scaffolding from Yakka Gear with adjustable wheels from side angle

    3.6m reach

    Reach (approx):

    • 3.6m Reach, 1.6m Platform Height.
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 2.6m H

    What’s inside:

    Base Unit

    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x

    Adjustable Wheels Toolkit

    • 4 pack of 6 inch Adjustable Castor Wheels - 1x
    Shop now
  • 3.8m Reach (1.74m platform) Compact Mobile Scaffolding from Yakka Gear with extension toolkit view from the front side angle

    3.8m reach

    Reach (approx):

    • 3.8m Reach, 1.8m Platform Height.
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 2.8m H

    What’s inside:

    Base Unit

    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x

    Extension Unit

    • Guard Rails 2 Row - 2x
    • Horizontal Braces - 3x
    Shop now
  • 4.2m Reach (2.14m platform) Compact Mobile Scaffolding from Yakka Gear including the extension toolkit and adjustable wheels from front side angle

    4.2m reach

    Reach (approx):

    •  4.2m Reach, 2.2m Platform Height.
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 3.2m H

    What’s inside:

    Base Unit

    • 4.2m Reach, 2.2m Platform Height.
    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x

    Extension Unit

    • Guard Rails 2 Row - 2x
    • Horizontal Braces - 3x

    Adjustable Wheels Toolkit

    • 4 pack of 6 inch Adjustable Castor Wheels - 1x
    Shop now
  • 5.5m Reach (3.5m platform) Compact Mobile Scaffolding from Yakka Gear including the extension toolkit and tower toolkit, view from the front side angle

    5.5m reach

    Reach (approx):

    • 5.5m Reach, 3.5m Platform Height.
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 4.5m H

    What’s inside:

    Base Unit

    • 4.2m Reach, 2.2m Platform Height.
    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x

    Extension Unit

    • Guard Rails 2 Row - 2x
    • Horizontal Braces - 3x

    Tower Unit

    • 6 Row Ladder Frames - 2x
    • Diagonal Braces - 2x
    • Toe Board - 1x
    • Stabilisers 2500mm - 2x
    • Platform with hatch + foldable ladder - 1x
    Shop now
  • 6.0m Reach (3.95m platform) 2-in-1 system Compact Mobile Scaffolding | Yakka Gear including the extension toolkit, tower toolkit from the front side angle

    6.0m reach (2-in-1 system)

    Reach (approx):

    • 6m Reach, 3.95m Platform Height
    • Reach can be adjusted by lowering the Platform to different rungs on the 1.44m x 0.74m H Frame (allow 1m above working Platform Height for creating fall protection fencing)

    Structure Size (approx):

    • Max tower size: 1.44m L x 0.74m W x 5.0m H

    What’s inside:

    Base Unit

    • 4.2m Reach, 2.2m Platform Height.
    • End V-Frame Folding Section - 1x
    • Platform with Hatch - 1x
    • Horizontal Brace - 1x
    • 4 pack of 5 inch Castor Wheels - 1x

    Extension Unit

    • Guard Rails 2 Row - 2x
    • Horizontal Braces - 3x

    Tower Unit

    • 6 Row Ladder Frames - 2x
    • Diagonal Braces - 2x
    • Toe Board - 1x
    • Stabilisers 2500mm - 2x
    • Platform with hatch + foldable ladder - 1x

    Adjustable Wheels Toolkit

    • 4 pack of 6 inch Adjustable Castor Wheels - 1x
    Shop now
View All

FAQ

Mobile Scaffolding related questions?

6m Reach Compact Mobile Scaffolding used as 2 separate scaffolds

The 6m reach compact scaffolding can be used as 1 big scaffold, with platform height of 3.95m and reachability of 6m.

There are 4 boxes in the 6m reach scaffolding (Base, Extension, Tower, Adj Wheels).
If separated into 2 smaller scaffolds, these are the combos:
Scaffold 1: Base (1.2m) + Adjustable Wheels (30cm) OR Castor Wheels

  • With castor wheels = 3.25m Reachability (1.2m platform height)
  • With Adjustable wheels = 3.6m Reachability (1.6m platform height)

Scaffold 2: Tower (1.70m) + Extension (60cm) + Adjustable Wheels (30cm) OR Castor Wheels

  • With castor wheels = 4.3m Reachability (2.3m platform height)
  • With Adjustable wheels = 4.6m Reachability (2.6m platform height)

Which Mobile Scaffold is the right size for me?

E.g. 6.0m reachability
3.9m platform height to stand on + 2m arms reach for user
Structure height ~4.9m.
Comes with: Adjustable Wheels + Base + Tower + Extension Toolkits
Adjustable wheels option:


Are you planning to use this on flat ground or uneven ground?
We offer adjustable wheels as well.
NOTE: 6.0m reachability setup offers 2-in-1 system, so you separate the tower into two smaller towers.  Comes with two sets of wheels: 1x standard non-adjusting set, 1x set adjustable wheels.

What are the platform dimensions?

Overall measurement: 1.44m long x  0.74m wide.

Trestles vs Mobile Scaffolding vs Staged Scaffolding?

View blog post

Adjustable Wheel Size

Shaft is 45mm (diameter)

if they bought a scaffold somewhere else, but we cannot guarantee that it will fit their scaffold

For more information: Adjustable Wheels toolkit

Are the wheels lockable?

Yes. The standard wheels included in the Base toolkit and the Adjustable Wheels toolkit are all lockable.

What Platform Height requires a licenced scaffolder?

A general rule of thumb is if a Platform Height is more than 4m above ground level, then a scaffolding licence will be required.

The good news is this scaffolding Platform Height can be set under this 4m limit.

E.g. The 6m Reachability's Platform height can be set to: 0.34m to ~2.2m, 3.5 to ~3.95m. All under the 4m limit.

It is important to note that the licensing requirements for scaffolding work may vary depending on the type of scaffolding, Work Health And Safety, and/or depending on the complexity of the work.

It is always best to check specifics and/or latest info by googling "Scaffolding WorkCover (NSW / QLD / VIC / SA / WA)."

Yakka Gear does not provide legal advice.

Mobile scaffolding used with other brands?

No.
Mobile Scaffolding and the parts are usually engineered and approved for safe operation when using the official approved parts together.
We cannot ensure that it will fit other models or makers.

Mobile Scaffolding storage size?

Mobil Scaffolding Combos come in boxes, see below for dimensions of boxes
3.25m reachability: Base Toolkit
3.8m reachability: Base + Extension Toolkits
4.2m reachability: Adjustable Wheels + Base + Extension Toolkits
5.5m reachability: Base + Extension + Tower Toolkits
6.0m reachability: Adjustable Wheels + Base + Tower + Extension Toolkits

Toolkit box sizes:(Base toolkit) 1.89m x 0.78m x 0.23m
(Extension toolkit) 1.52m x 0.78m x 0.14m
(Tower toolkit) 2.03m x 0.78m x 0.24m
(ADJ Caster Wheels toolkit) 1.1m x 0.25m x 0.25m

Can I extend the scaffold higher than 6m reach?

If you need a reach higher than 6m, we recommend to use the Wide Scaffolding. These have a reachability of up to 8.6m.

All our scaffoldings have a uniform design to fit together, this is to enable various ways of configuring the scaffolding to different reachabilities.

However the user manual does not advise building the product beyond what is in the guidelines, so we cannot advise you on anything beyond 6m scaffolding reach when using the Compact Scaffolding.

View all

Super easy ordering in only 2 steps

  • STEP #1


    Complete your purchase, and then you will automatically receive a paid invoice email - the paid invoice number will be your order reference number for any enquiries.


    If delivery required, contact us to get a delivery quote.


    If bank transfer payment, we will confirm your order once payment has cleared.

    STEP #2


    We will email you when your order is ready for pickup (including pickup info, or dispatched for delivery.


    We do our best to reply to payment confirmations usually in 1-3 hours.


    If you purchased outside of service hours     (Weekdays 8:30am-2:30pm Sydney/Melbourne time) it will be the next business day.

Contact

Speak to a consultant

We’re here to help.
If you have questions before making a purchase, need assistance as a current customer, or have any other concerns, contact us today and we'll get back to you shortly.

Queensland (QLD)
Brisbane 07 3123 2718
Sunshine Coast 07 5346 0115
Gold Coast 07 2104 3791
Townsville 07 4426 2724

New South Wales (NSW)
Sydney 02 9161 2992
Newcastle 02 4003 5800

Victoria (VIC)
Melbourne 03 9770 1324

Australian Capital Territory (ACT)
Canberra 02 7251 2288

Western Australia (WA)
Perth 08 6245 0608

South Australia (SA)
Adelaide 08 8164 1059

Email
support@yakkagear.com.au


YAKKA GEAR
ABN 14 592 651 794

Our Story



proudly serving over 8,700 Aussie organisations, Australian owned, trade pricing upfront. Go independent.

Proudly serving over 8,600 Aussie tradies, businesses, home renovators since 2015.

Access the best trade pricing upfront.

Super easy online shopping.
A better online viewing experience than in-store.
Browsing and learning about all your choices at your own pace without wasting valuable time standing around at shops/warehouses.
We make sure of stock availability and if you have questions before making a purchase, need assistance as a current customer, or have any other concerns, then we are here to help.

Pick up your order from 2hrs or express delivery from next day.

Access Australia’s fastest delivery network.
Get it delivered directly to your door or worksite to take advantage of the time and cost savings over the Pickup option.
Our delivery network offers a full range of services for all your shipping needs, including:

  • Handling of oversized goods with specialised trucks
  • Ability to deliver to a variety of locations, including residential, commercial, and worksites
  • Driver to call Receiver approx. 30-60min before arrival
  • Real-time online tracking, whenever available, to keep you informed and in control

Yakka Gear is your local, Aussie-owned business with Australia-wide locations.

High-quality products designed for Australia.
* Approved to Australian Standards & WorkCover
* Australian manufacturer's warranty

Shop with us for peace of mind.
